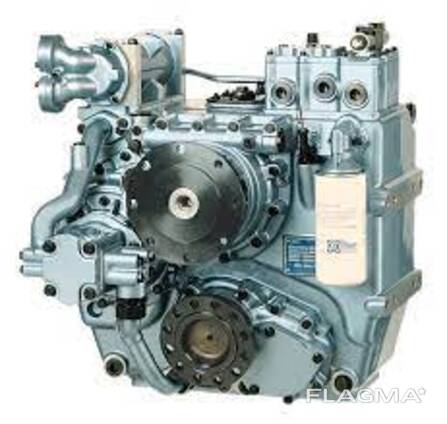

ZF3060V marine transmission unused new

ZF3060 V marine transmission, unused new , surplus
ratio 1:2,5

Stock available
Subject to prior sale.

other transmissions available by request:

zf3060V
part list: 3101026059 ratio: 2.520:1a

zf 2560
part list: 3082012055 ratio: 4.133:1a
part list: 3082012055 ratio: 4.133:1a
zf 3055
part list: 3101003031 ratio: 2.500:1a
part list: 3101003031 ratio: 2.500:1a
zf 3060 v
part list: 3101026059 ratio: 2.520:1a
part list: 3101026059 ratio: 2.520:1a
zf 3070
part list: 3101078059 ratio: 2.773:1a
zf w7500
part list: 3084020045 ratio: 5.533:1a
part list: 3084020045 ratio: 5.533:1a

available auxiliary equipment:

• N. 2 Propeller axles 5370 mm complete with locking rings and crown nuts
• N.. 2 coupling flanges in C45 axis 0100 complete with fixing screws
• N.. 2 external rudders tubes to the hull l. 2100 mm in 6082 T6 aluminum
• N. 2 Internal tubes - Bushing holder 0150 thickness 12.5 length 2285 mm in AISI 316 complete with
hydrolubricated bushings with attachment for mechanical seal
• N.. 2 Microterm MTM908 mechanical seals for 0100 axis complete with Pneumostop
• N. 2 Propellers shaft support in Nibral 0 axis 100 h 715 mm insulating plate and counterplate
• N. 2 rudders holes to be welded in aluminum 6082 T6 0 ext. 140 th.30 with welded flanges
• N. 2 Lower bushings for rudder bushings in PR18 100x70 h 160mm to be installed on site
• N. 2 Upper bushings for rudder bushings in PR18 100x70 h 100 mm to be installed on site
• N. 2 Boxed rudders in TS70660/39 steel with ring nut and counter-ring nut, sacrificial zincs
• N .1 double rudder arm in OTS BTD60-150-232 complete with pins and bolts
• N. 1 double rudder arm in OTS BTD60-150-232 complete with pins and bolts
• N. 2 Zincs for propeller nut 0 200
• N. 1 AISI 304 0 71 mm rudder connection bar, length 3200 mm, complete with articulated ends
• N. 1 Propeller in Nibral 5 blades MV14 diameter 01050X 1650 hole 0100 right with 1:10 finish class S
- Balancing ISO 1940-1:2003 G 2.5
• N.1 Propeller in Nibral 5 blades MV14 diameter 01050X 1650 hole 0100 left with 1:10 finish class S -
Balancing ISO 1940-1:2003 G 2.5
